Swingarm Components

Whether you are a swingarm fabricator or building complete rigid drag frames, here's some stuff that might make your projects easier.

FREE PRIORITY MAIL U.S. SHIPPING for online orders.

12mm x 0.875 tab

12mm Shock Bolt Tabs for 7/8" Tubing (package of 4)

CNC Laser Cut Swingarm Shock Mount Tabs. (radius fits 7/8" tubing)

Commonly used for ladder or 4-link style swingarms.

3/16" Thick Mild Steel with 12mm Hole.

Sold in package of four pieces.

12mm x 1.000 tab

12mm Shock Bolt Tabs for 1" Tubing (package of 4)

CNC Laser Cut Swingarm Shock Mount Tabs. (radius fits 1" tubing)

Commonly used for ladder or 4-link style swingarms.

3/16" Thick Mild Steel with 12mm Hole.

Sold in package of four pieces.

12mm x 1.250 tab

12mm Shock Bolt Tabs for 1-1/4" Tubing (package of 4)



CNC Laser Cut Swingarm Shock Mount Tabs. (radius fits 1-1/4" tubing)

3/16" Thick Mild Steel with 12mm Hole.

Sold in package of four pieces.

12mm x 1.500 tab

12mm Shock Bolt Tabs for 1-1/2" Tubing (package of 4)



CNC Laser Cut Swingarm Shock Mount Tabs. (radius fits 1-1/2" tubing)

3/16" Thick Mild Steel with 12mm Hole.

Sold in package of four pieces.

LTZ400/KFX400/DVX400 Aluminum Weld-In Extension KIT

Plus-2, Plus-4 or Plus-6 Billet 6061-T6 Aluminum Swingarm Extension Kit

Extend your own LTZ400/KFX400/DVX400 factory swingarm by 2, 4 or 6 inches.

All you need is a saw and a welder... no jig or fixture needed!!

Saw your swingarm in half; push in these "precision-fit" extensions; weld it up!!

(these extensions engage 2-3/4" deep in to the factory swingarm tubing)

87mm Rear Carrier Clamping Straps (price per pair)

Radius notched for pinch bolt sleeves

Split horizontally

Manufactured from 3-3/4" O.D. 1020 grade DOM steel tubing.

Bored dia. is 3.435" (87mm)

100% CNC Machined - Sold in pairs

* 1-1/2" wide for welding to 3/4" to 1-1/4" diameter horizontals.

COMMONLY USED ON THE FOLLOW AFTERMARKET SWINGARMS:

Banshee, 660 Raptor, 2004/2005 YFZ450, KFX400/LTZ400, 1986-1989 ATC250R, TRX250R, TRX450R

87mm Rear Carrier Housing Tube, BACKSTRAP-1 Style

3.695" O.D. 1018 grade steel.

Bore dia. is 3.435" (87mm);  Length is 6.290"

Split horizontally.

100% CNC Laser Cut.

COMMONLY USED ON THE FOLLOW AFTERMARKET SWINGARMS:

Banshee, 660 Raptor, 2004/2005 YFZ450, KFX400/LTZ400, 1986-1989 ATC250R, TRX250R

87mm Rear Carrier Housing Tube, BACKSTRAP-2 Style

3.695" O.D. 1018 grade steel.

Bore dia. is 3.435" (87mm);  Length is 6.290"

Split horizontally.

100% CNC Laser Cut.

COMMONLY USED ON THE FOLLOW AFTERMARKET SWINGARMS:

Banshee, 660 Raptor, 2004/2005 YFZ450, KFX400/LTZ400, 1986-1989 ATC250R, TRX250R

87mm Rear Carrier Housing Tube, FLAME Style

Flames on the top only.

3.695" O.D. 1018 grade steel.

Bore dia. is 3.435" (87mm);  Length is 6.290"

Split horizontally.

COMMONLY USED ON THE FOLLOW AFTERMARKET SWINGARMS:

Banshee, 660 Raptor, 2004-2005 YFZ450, KFX400/LTZ400, 1986-1989 ATC250R, TRX250R

100% CNC Laser Cut.

87mm Rear Carrier Housing Tube, MALTESE Style

3.695" O.D. 1018 grade steel.

Bore dia. is 3.435" (87mm);  Length is 6.290"

Bottom side is "open" to let sand/dirt/water out ;-}

100% CNC Laser Cut.

COMMONLY USED ON THE FOLLOW AFTERMARKET SWINGARMS:

Banshee, 660 Raptor, 2004-2005 YFZ450, KFX400/LTZ400, 1986-1989 ATC250R, TRX250R

tube 4-2-09

87mm Rear Carrier Housing Tube, STANDARD* Style

*WE HAVE ADDED A GREASE FITTING ACCESS HOLE IN THE BOTTOM OF OUR "STANDARD" TUBES ;-}

Radius notched for pinch bolt sleeves.

Split vertically and horizontally.

Manufactured from 3-3/4" O.D. 1020 grade DOM steel tubing.

Bored dia. is 3.435" (87mm);  Length is 6.290"

Bottom side is "open" to let sand/dirt/water out ;-}

100% CNC machined.

COMMONLY USED ON THE FOLLOW AFTERMARKET SWINGARMS:

Banshee, 660 Raptor, 2004-2005 YFZ450, KFX400/LTZ400, 1986-1989 ATC250R, TRX250R

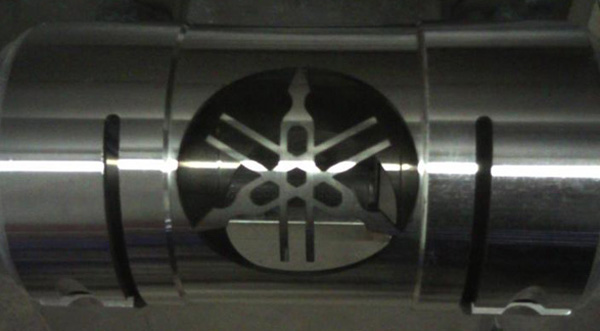

87mm Rear Carrier Housing Tube, TUNING FORK Style

CNC LASER CUT YAMAHA TUNING FORK LOGO

Radius notched for pinch bolt sleeves.

Split vertically and horizontally.

Manufactured from 3-3/4" O.D. 1020 grade DOM steel tubing.

Bored dia. is 3.435" (87mm);  Length is 6.290"

Bottom side is "open" to let sand/dirt/water out ;-}

100% CNC machined.

COMMONLY USED ON THE FOLLOW AFTERMARKET SWINGARMS:

Banshee, 660 Raptor, 2004-2005 YFZ450

87mm Rear Carrier Housing Tube, WEB Style

3.695" O.D. 1018 grade steel.

Bore dia. is 3.435" (87mm);  Length is 6.290"

Split horizontally.

100% CNC Laser Cut.

COMMONLY USED ON THE FOLLOW AFTERMARKET SWINGARMS:

Banshee, 660 Raptor, 2004-2005 YFZ450, KFX400/LTZ400, 1986-1989 ATC250R, TRX250R

87mm Rear Carrier Housing Tube, WINDOWS Style

Radius notched for pinch bolt sleeves.

Split vertically and horizontally.

Four square holes through relieved center section.

Manufactured from 3-3/4" O.D. 1020 grade DOM steel tubing.

Bored dia. is 3.435" (87mm);  Length is 6.290"

100% CNC Machined.

COMMONLY USED ON THE FOLLOW AFTERMARKET SWINGARMS:

Banshee, 660 Raptor, 2004-2005 YFZ450, KFX400/LTZ400, 1986-1989 ATC250R, TRX250R

Bombardier Can-Am DS650X 95mm Rear Carrier Housing Tube, FLAME Style

DESIGNED TO FIT THE BRP CAN-AM DS650X CARRIER.

Flames on the top only.

4.000" O.D. 1018 grade steel.

Bore dia. is 3.750" (95mm); Length is 6.150"

100% CNC Laser Cut.

Honda TRX450R 87mm Rear Carrier Housing Tube, BACKSTRAP-1 Style

DESIGNED TO FIT THE TRX450R CARRIER.

3.695" O.D. 1018 grade steel.

Bore dia. is 3.435" (87mm); Length is 6.122"

100% CNC Laser Cut.

Honda TRX450R 87mm Rear Carrier Housing Tube, FLAME Style

DESIGNED TO FIT THE TRX450R CARRIER.

Flames on the top only.

3.695" O.D. 1018 grade steel.

Bore dia. is 3.435" (87mm); Length is 6.122"

100% CNC Laser Cut.

Honda TRX450R 87mm Rear Carrier Housing Tube, MALTESE Style

DESIGNED TO FIT THE TRX450R CARRIER.

3.695" O.D. 1018 grade steel.

Bore dia. is 3.435" (87mm);  Length is 6.122"

Bottom side is "open" to let sand/dirt/water out ;-}

100% CNC Laser Cut.

tube 4-2-09

Honda TRX450R 87mm Rear Carrier Housing Tube, STANDARD* Style

*WE HAVE ADDED A GREASE FITTING ACCESS HOLE IN THE BOTTOM OF OUR "STANDARD" TUBES ;-}

DESIGNED TO FIT THE TRX450R CARRIER.

Radius notched for pinch bolt sleeves.

Manufactured from 3-3/4" O.D. 1020 grade DOM steel tubing.

Bored dia. is 3.435" (87mm);  Length is 6.122"

Bottom side is "open" to let sand/dirt/water out ;-}

100% CNC machined.

Honda TRX450R 87mm Rear Carrier Housing Tube, WEB Style

DESIGNED TO FIT THE TRX450R CARRIER.

3.695" O.D. 1018 grade steel.

Bore dia. is 3.435" (87mm);  Length is 6.122"

Split horizontally.

100% CNC Laser Cut.

Honda TRX450R 87mm Rear Carrier Housing Tube, WINDOWS Style

DESIGNED TO FIT THE TRX450R CARRIER.

Radius notched for pinch bolt sleeves.

Four square holes through relieved center section.

Manufactured from 3-3/4" O.D. 1020 grade DOM steel tubing.

Bored dia. is 3.435" (87mm);  Length is 6.122"

KTM450/KTM525 95mm Rear Carrier Housing Tube, OEM Style

DESIGNED TO FIT THE KTM450/KTM525 FACTORY CARRIER.

4.010" O.D. 1018 grade steel.

Bore dia. is 3.750" (95mm); Length is 6.070"

100% CNC Laser Cut.

Polaris Predator/Outlaw 95mm Rear Carrier Housing Tube, OEM Style

FITS THE POLARIS PREDATOR 500/OUTLAW 525 FACTORY CARRIER.

4.010" O.D. 1018 grade steel.

Bore dia. is 3.750" (95mm); Length is 6.033"

100% CNC Laser Cut.

Predator/Outlaw/DS650/KTM 95mm Rear Carrier Clamping Straps (price per pair)

FOR POLARIS PREDATOR, 525 OUTLAW & BRP CAN-AM DS650X CARRIERS

ALSO FOR KTM450 AND KTM525 CARRIERS

1-1/2" Wide.

Radius notched for pinch bolt sleeves; Split Horizontally.

Manufactured from 4" O.D. 1020 grade DOM steel tubing.

Bored dia. is 3.750" (95mm)

100% CNC Machined - Sold in pairs

Yamaha 2006 and newer YFZ450 90mm Rear Carrier Housing Tube, FLAME Style

DESIGNED TO FIT THE 2006 and newer YFZ450 CARRIER.

Flames on the top only.

3.810" O.D. 1018 grade steel.

Bore dia. is 3.550" (90mm); Length is 6.460"

100% CNC Laser Cut.

Yamaha 2006 and newer YFZ450 90mm Carrier Housing Tube, STANDARD* Style

*WE HAVE ADDED A GREASE FITTING ACCESS HOLE IN THE BOTTOM OF OUR "STANDARD" TUBES ;-}

DESIGNED TO FIT THE 2006 and newer YFZ450 CARRIER.

Radius notched for pinch bolt sleeves; Split vertically and horizontally.

Manufactured from 1020 grade DOM steel tubing.

Bored dia. is 3.550" (90mm);  Length is 6.460"

Bottom side is "open" to let sand/dirt/water out ;-}

100% CNC machined.

Yamaha 2006 and newer YFZ450 90mm Carrier Housing Tube, TUNING FORK Style

CNC LASER CUT YAMAHA TUNING FORK LOGO

DESIGNED TO FIT THE 2006 and newer YFZ450 CARRIER.

Radius notched for pinch bolt sleeves; Split vertically and horizontally.

Manufactured from 1020 grade DOM steel tubing.

Bored dia. is 3.550" (90mm);  Length is 6.460"

Bottom side is "open" to let sand/dirt/water out ;-}

100% CNC machined.

Yamaha 700 Raptor 90mm Rear Carrier Housing Tube, FLAME Style

DESIGNED TO FIT THE RAPTOR 700 CARRIER.

Flames on the top only.

3.810" O.D. 1018 grade steel.

Bore dia. is 3.550" (90mm); Length is 6.840"

100% CNC Laser Cut.

Yamaha 700 Raptor 90mm Rear Carrier Housing Tube, STANDARD* Style

*WE HAVE ADDED A GREASE FITTING ACCESS HOLE IN THE BOTTOM OF OUR "STANDARD" TUBES ;-}

DESIGNED TO FIT THE RAPTOR 700 CARRIER.

Radius notched for pinch bolt sleeves; Split vertically and horizontally.

Manufactured from 1020 grade DOM steel tubing.

Bored dia. is 3.550" (90mm);  Length is 6.840"

Bottom side is "open" to let sand/dirt/water out ;-}

100% CNC machined.

Yamaha 700 Raptor 90mm Rear Carrier Housing Tube, TUNING FORK Style

CNC LASER CUT YAMAHA TUNING FORK LOGO

DESIGNED TO FIT THE RAPTOR 700 CARRIER.

Radius notched for pinch bolt sleeves; Split vertically and horizontally.

Manufactured from 1020 grade DOM steel tubing.

Bored dia. is 3.550" (90mm);  Length is 6.840"

Bottom side is "open" to let sand/dirt/water out ;-}

100% CNC machined.

Pinch Bolt Sleeves (package of 20 Sleeves)

* Weld-On Upper and Lower Sleeves for 5/16" or 3/8" Pinch Bolts and Nuts

* Each Weld-On Sleeve is 5/8" O.D. x 3/4" Long.

* CNC Machined from 1018 Billet Steel.

20 pieces (enough for 5 swingarms)

BULLET Pinch Bolt Sets (4 sets as shown)

* Weld-On CNC Machined 1018 Steel Bullet (tapped 3/8"-24)

* Weld-On CNC Machined 1018 Steel Sleeve (with .390" bore)

* 3/8"-24 UNF x 1-3/4" Grade-8 Zinc Plated Bolt

* CNC Machined Stainless Steel Washer

4 assemblies as shown (enough for 2 swingarms)

Honda ATC250R/TRX250R Swingarm Front Pivots (2 piece set)



FIT '85/'86 ATC250R AND '86/'87 TRX250R

Manufactured from 1-3/8" O.D. 1020 grade DOM steel tubing.

100% CNC machined

Honda TRX400EX/TRX450R Swingarm Front Pivots (2 piece set)

Sold as 2 piece set.

Manufactured from 1-3/8" O.D. 1020 grade DOM steel tubing.

100% CNC machined

Suzuki LTZ400 Swingarm Front Pivots (2 piece set)

Suzuki LTZ400/Kawasaki KFX400/ArticCat DVX400 Pivot Tube Set

Sold as 2 piece set.

Manufactured from 1-1/2" O.D. 1020 grade DOM steel tubing.

100% CNC machined

Yamaha 660 Raptor Swingarm Front Pivots (2 piece set)

Sold as 2 piece set.

Manufactured from 1-1/2" O.D. 1020 grade DOM steel tubing.

100% CNC machined

Yamaha 700 Raptor Swingarm Front Pivots (2 piece set)

Sold as 2 piece set.

Manufactured from 1-1/2" O.D. 1020 grade DOM steel tubing.

100% CNC machined

Yamaha Banshee "Relieved" Swingarm Front Pivot Outer Tube

Manufactured from 1-3/8" O.D. 1020 grade DOM steel tubing.

3/16" wall with outside diameter "relieved" to reduce weight.

100% CNC machined

yfzpivots225

Yamaha YFZ450, NON-EFI* Swingarm Front Pivots (2 piece set)

Sold as 2 piece set.

Manufactured from 1020 grade DOM steel tubing.

100% CNC machined

* FITMENT = STEEL-FRAME, NON-EFI, YFZ450

Yamaha YFZ450R, EFI* Swingarm Front Pivots (2 piece set)

Sold as 2 piece set.

Manufactured from 1-1/2" O.D. 1020 grade DOM steel tubing.

100% CNC machined

* FITMENT = ALUMINUM-FRAME, EFI, YFZ450R

USA MATERIALS / USA LABOR
